MAXIMUM INSPECTION COVERAGE
HYPERION
Hyperion is taking UV-A inspection lamps to the extreme. It covers a staggering 1.1 x 1.1 m (3.6 x 3.6 ft) at a distance of 1 m (3.3 ft) from the surface with an irradiance > 1000 µW/cm². The square beam geometry allows for mounting multiple units without dark spots in between.
Hyperion
Hyperion is available in one model only. It comes with a push button to operate the lamp with a 10-meter (32.8 feet) cable. Optional is a foot pedal. The sealing is penetrant resistant, and the lamp is tested to be IP68 classified (waterproof).
P/N L3201: Hyperion

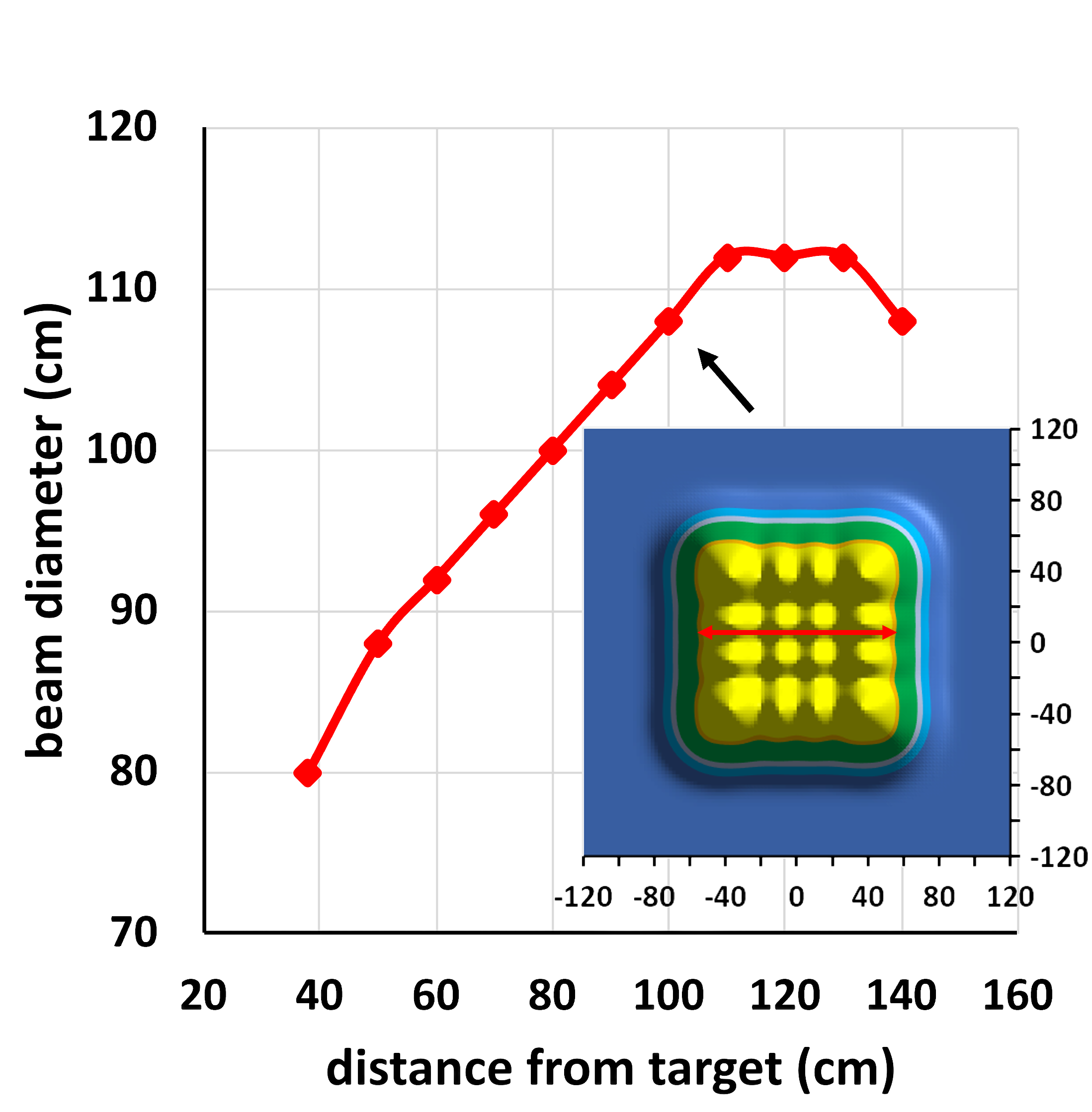

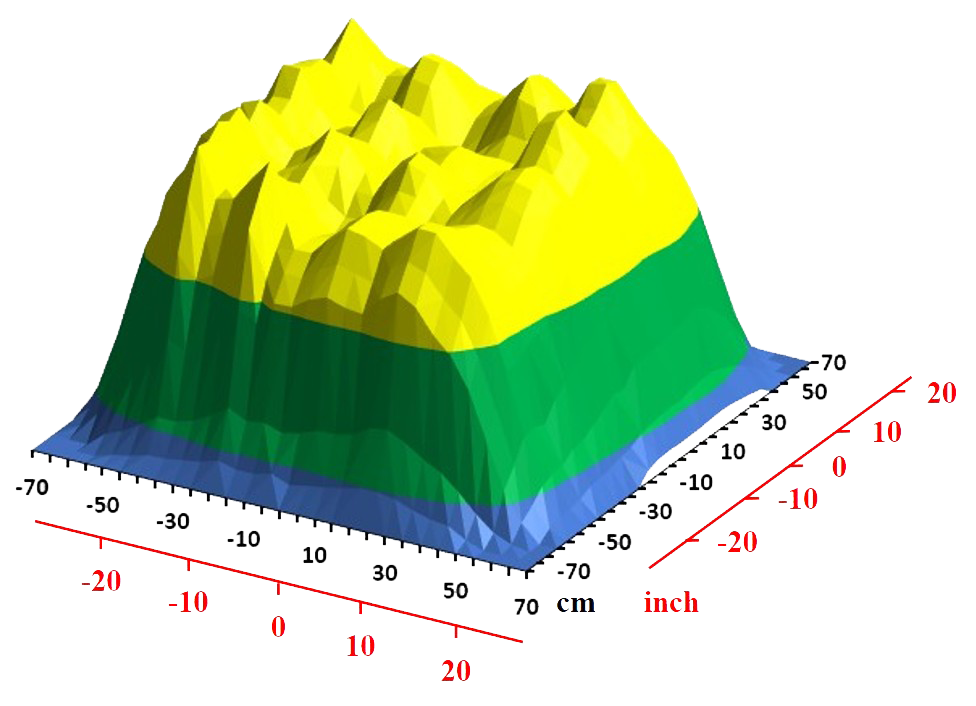

| Beam profile Hyperion at 1 m distance |
 |
Hyperion Kit contents
|
 |
Additional information
|

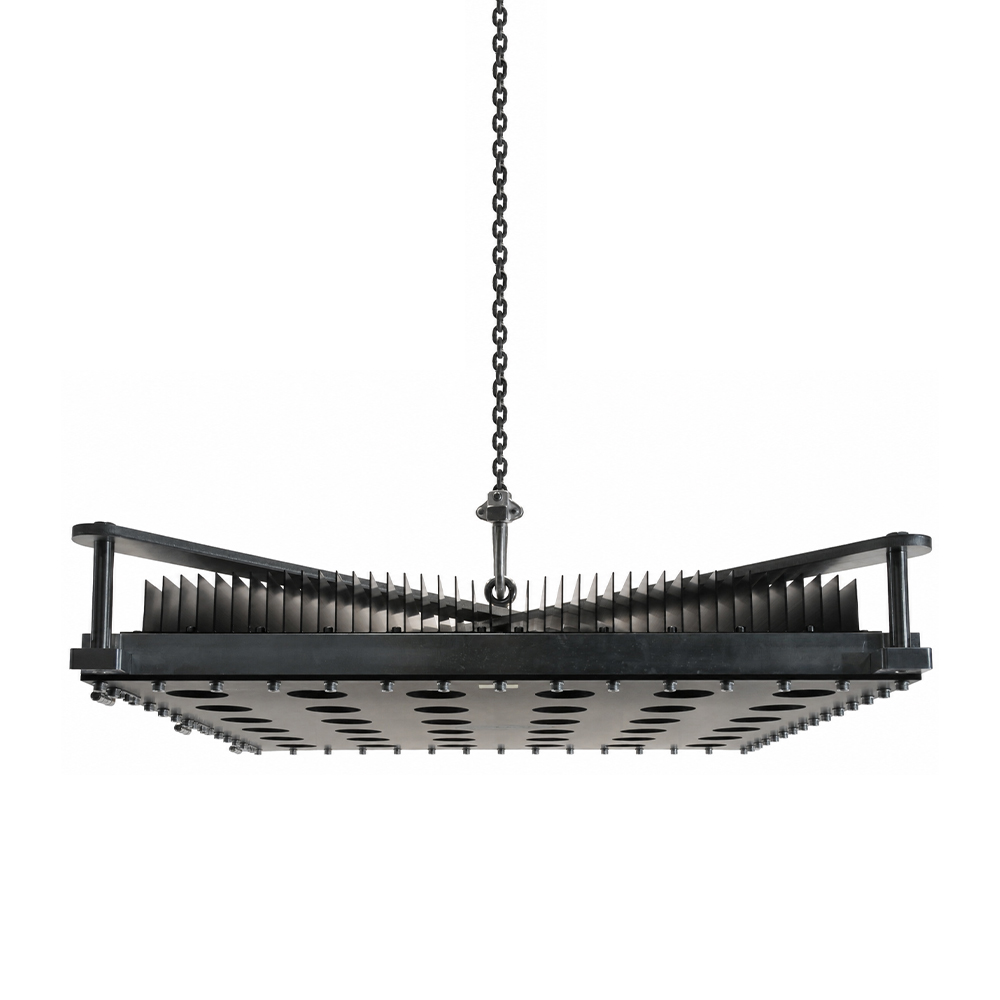

Eye bolt for easy mounting An eye bolt holds the unit together with two durable stainless steel bars. |
 |
Technical Specification
| Model | Part.No. | Battery/Mains | UV-A LED | Peak UV-A irradiance at 1m / 3.3ft | Weight | Beam diameter (>1000 µW/cm²) |
IP68 | Warranty |
|
Hyperion |
L3201 | Mains | 36 | 2100 µW/cm² | 36 kg (79.4 lb) | 1.1m x 1.1m at 1m (3.6ft x 3.6ft at 3.3ft) |
Yes | 4 years |
Compliances
| Model | Part.No. | ASTM E3022 | Rolls-Royce RRES 90061 | Airbus AITM 6-1001 | USAF | Pratt & Whitney | The Boeing Co | ISO 3059-2012 |
| Hyperion | L3201 | Yes | Yes | Yes |
