FLASHLIGHTS
UVG3 2.0 SERIES
The UVG3 2.0 series are flashlights intended to be used in testing applications where space is limited or when a smaller light beam profile is acceptable. What differs the different UVG3 models are mainly beam size and intensity. What unites all models is a waterproof ingress protection (IP68) and penetrant resistant sealing in combination with a small size and a light weight.
UVG3 2.0 Floodlight
UVG3 Floodlight is designed to meet the strictest aerospace requirements that has a maximum intensity of 5 000 μW/cm2 at 38.1 cm/15″ and needs an even beamprofile.
P/N L136: UVG3 2.0 Floodlight
| Beam Profile UVG3 2.0 Floodlight |  |

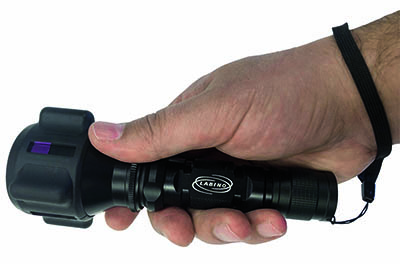

UVG3 2.0 Midlight
UVG3 2.0 Midlight is the most widely used flashlight in the product line. It has a maximum intensity of 10 000 μW/cm2 at 38.1 cm/15″.
P/N L135: UVG3 2.0 Midlight
NSN for P/N L135: 6230-22-620-0609

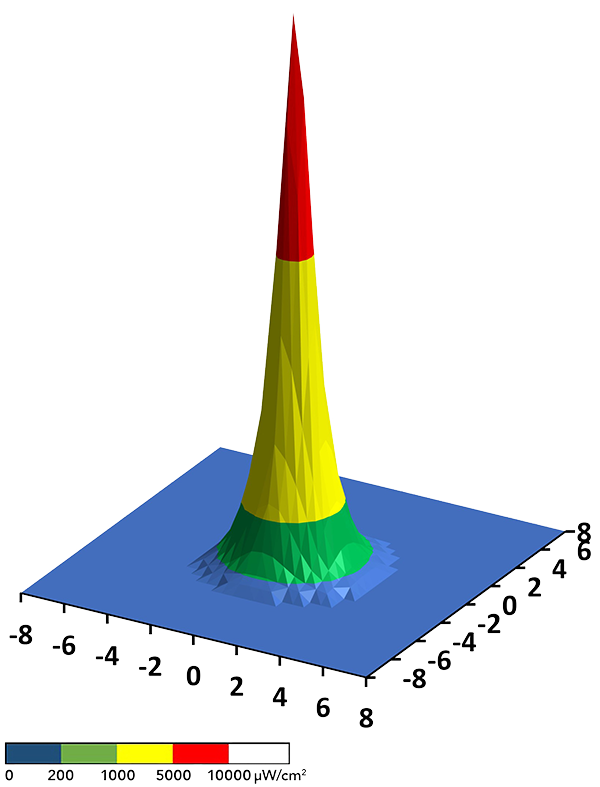

| Beam Profile UVG3 2.0 Midlight |  |
UVG3 2.0 Spotlight
UVG3 2.0 Spotlight is used in application when inspection is performed at longer distances and a higher intensity is required. Also used for leak detection and clean room verification. The lamp offers approx. 80 000 μW/cm2 at 38 cm/15″.
P/N L134: UVG3 2.0 Spotlight

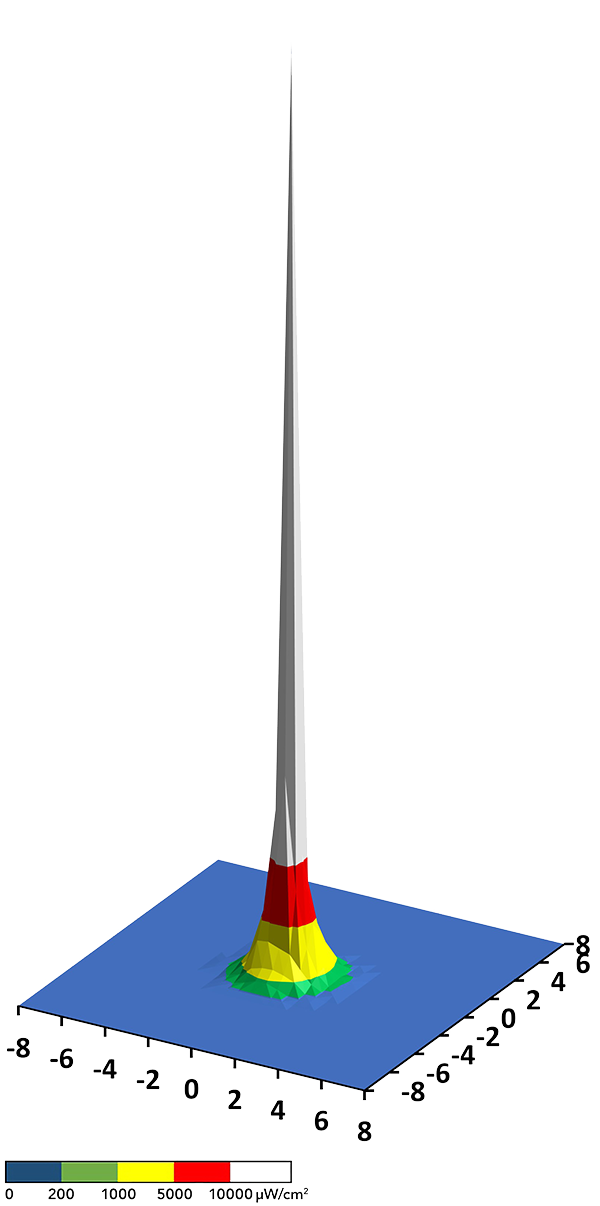

| Beam Profile UVG3 2.0 Spotlight |  |

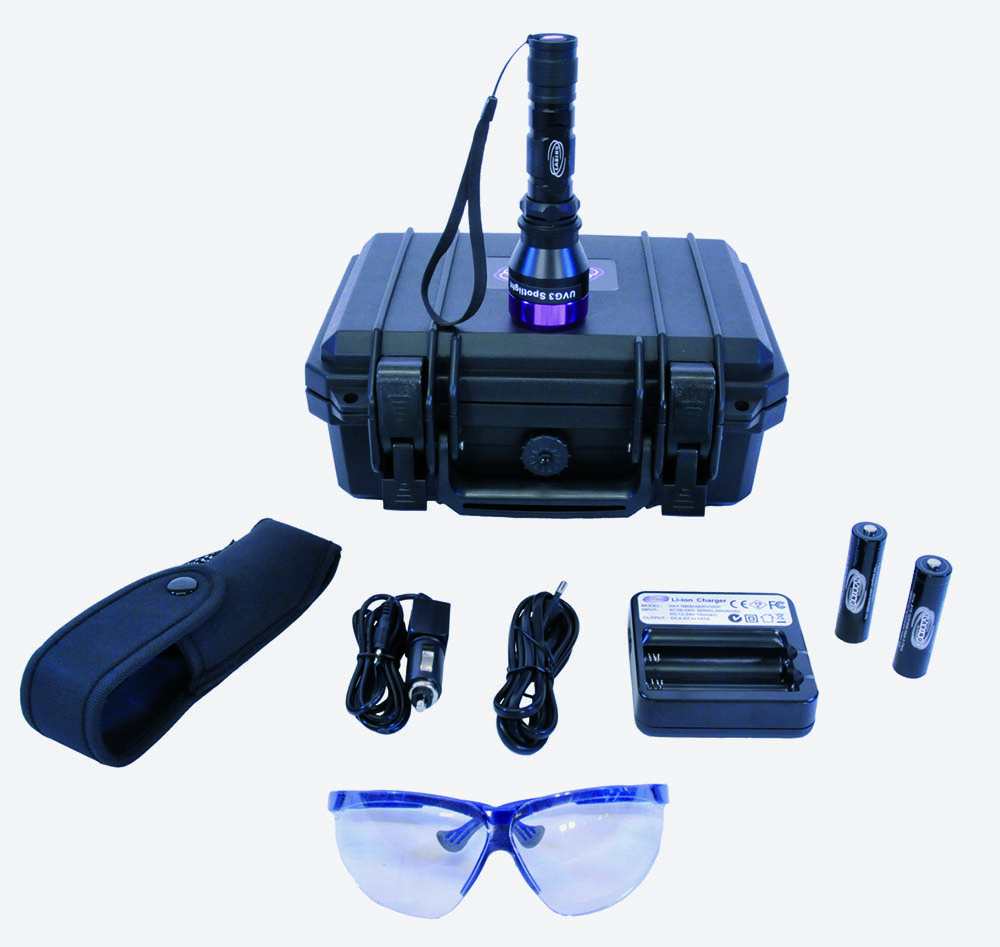

UVG3 2.0 Single kit contents
UVG3 2.0 Single kit includes:
|
 |

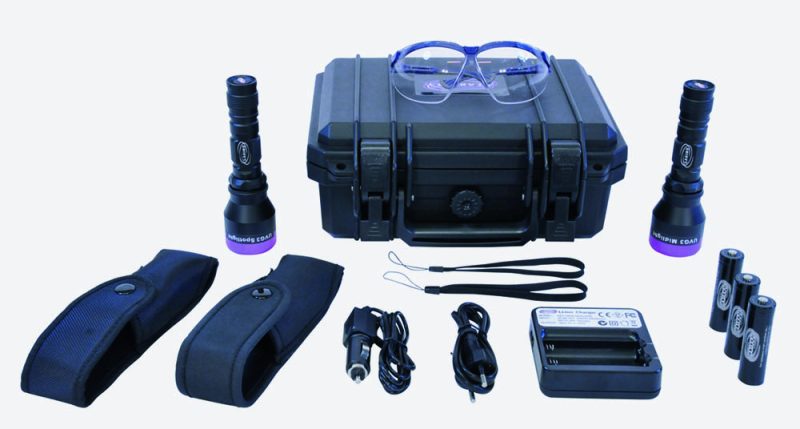

UVG3 2.0 Double kit contents
UVG3 2.0 Double kit includes:
|
 |
Additional information

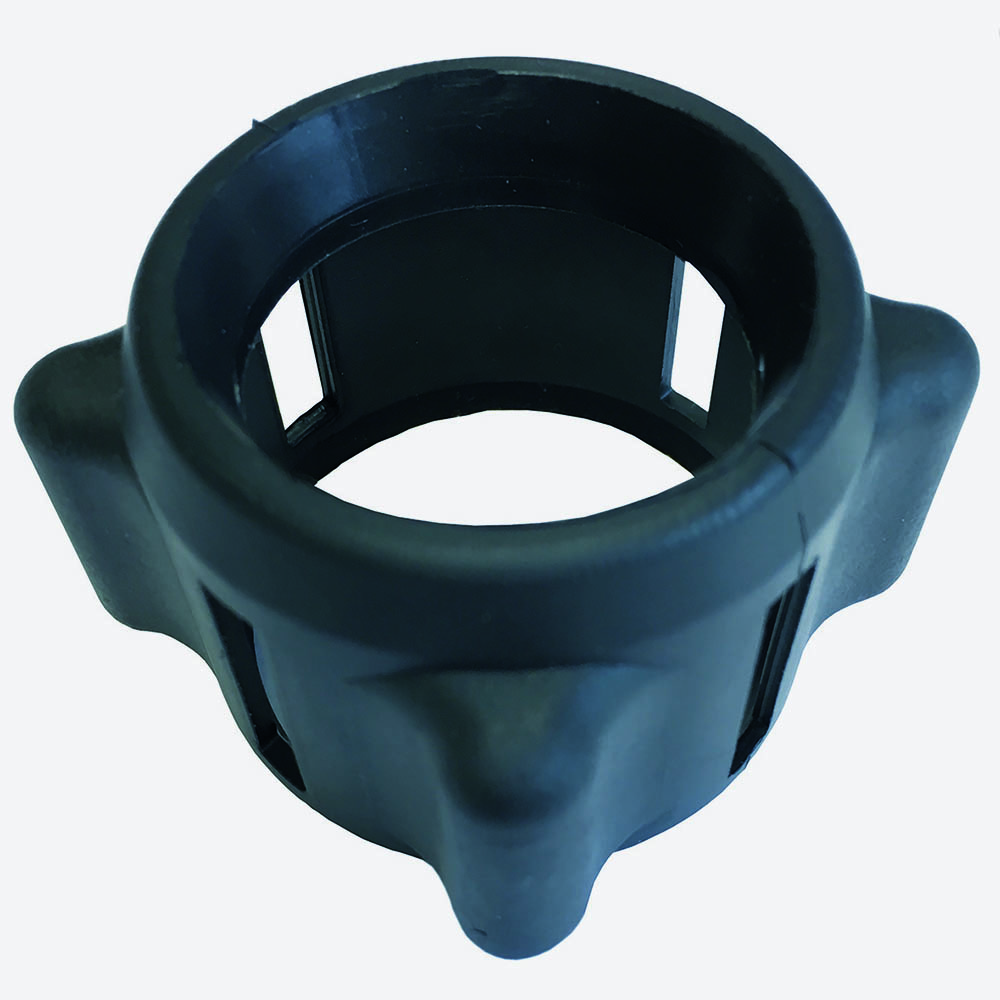

All flashlights come with a Rubber bumper that is designed to prevent the torch from rolling and fall on the floor. A design proposed by an inspector serving for the US Air Force. |

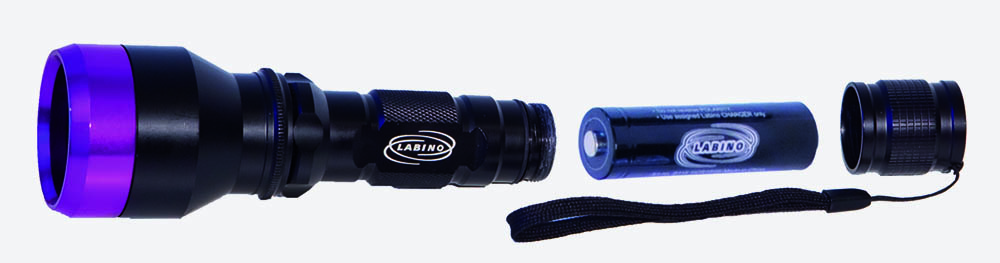

The battery is replaced by unscrewing the end cap. Each flashlight comes with two batteries. |
Technical Specification
| Model | Part.No. | Battery/Mains | UV-A LED | Peak UV irradiance (μW/cm²) at 38.1 cm (15”) | Weight (with batteries) | Beam diameter (> 1000 µW/cm²) | Battery running time | IP68 | Warranty |
| UVG3 2.0 Floodlight | L136 | Battery | 1 | 4.000 | 230 g (8.2 oz) | 12 cm (4.8”) | 4h | Yes | 2 years |
| UVG3 2.0 Midlight | L135 | Battery | 1 | 9.000 | 215 g (7.6 oz) | 10.5 cm (4.2”) | 6h | Yes | 2 years |
| UVG3 2.0 Spotlight | L134 | Battery | 1 | 80.000 | 215 g (7.6 oz) | 7.6 cm (3”) | 4h | Yes | 2 years |
Compliances
| Model | Part.No. | ASTM E3022 | Rolls-Royce RRES90061 | Airbus AITM6-1001 | USAF | Pratt&Whitney | The Boeing Co. | ISO 3059-12 |
| UVG5 2.0 Floodlight UV | L136 | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| UVG3 2.0 Midlight | L135 | Yes | Yes | Yes | Yes | |||
| UVG3 2.0 Spotlight | L134 | Yes | Yes |
