HEADLIGHTS

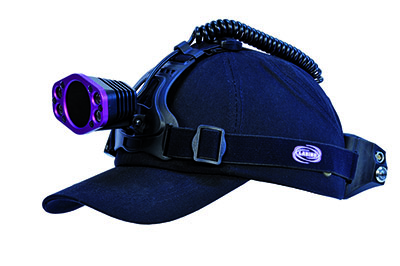

UVG5 2.0 SERIES
The UVG5 2.0 series are headlights intended to be used where a hands-free solution is preferred. Especially useful for Magnetic Particle Inspection in the field, where you need one hand for the spray can and the other for the yoke. The headlight is a brilliant product when the inspection requires you to climb ladders or crawl in cramped areas. What differs the various UVG5 models are the beam size, their intensity and whether the lamp offers a white light or not. What unites all models is a waterproof ingress protection (IP68) and penetrant resistant sealing.
UVG5 2.0 Floodlight
UVG5 2.0 Floodlight is designed to meet the strictest aerospace requirements that has a maximum intensity of 5 000 μW/cm2 at 38.1 cm/15″ and needs an even beamprofile.
P/N L130: UVG5 2.0 Floodlight UV & WH
P/N L131: UVG5 2.0 Floodlight UV only
| Beam Profile UVG5 2.0 Floodlight |
 |
UVG5 2.0 Midlight
UVG5 2.0 Midlight is designed to meet requirements with a maximum intensity of 10 000 μW/cm2 at 38.1 cm/15″.
P/N L128: UVG5 2.0 Midlight UV & WH
P/N L129: UVG5 2.0 Midlight UV Only
NSN for P/N L129: 6230-64-002-0947
| Beam Profile UVG5 2.0 Midlight |
 |
UVG5 2.0 Spotlight
UVG5 2.0 Spotlight is designed for applications that requires an ultra-intense UV-A intensity exceeding 80 000 μW/cm2 at 38.1 cm/15″.
P/N L127: UVG5 2.0 Spotlight UV & WH
| Beam Profile UVG5 2.0 Spotlight |
 |

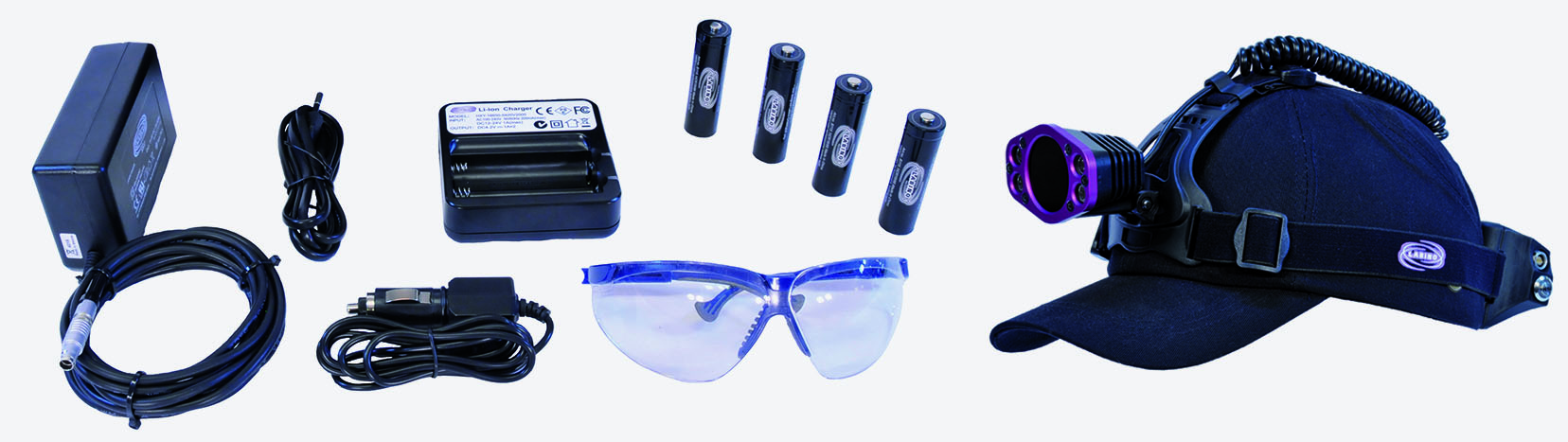

UVG5 2.0 Kit contents
UVG5 2.0 KIT includes:
|
 |
Additional information

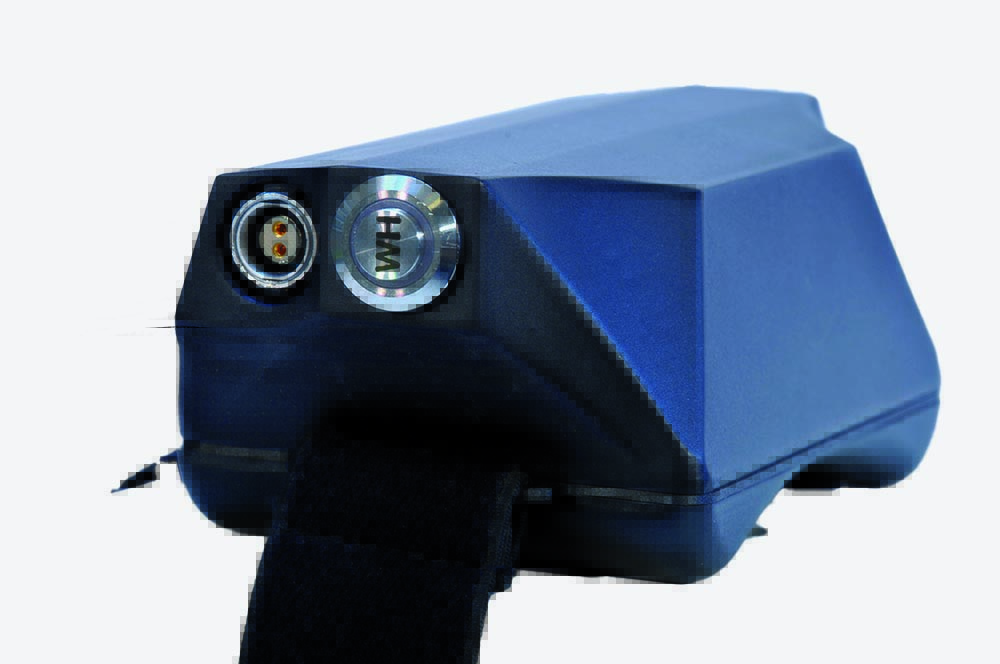

| On/off switch in stainless steel for durability and contact for charging PSU. |  |

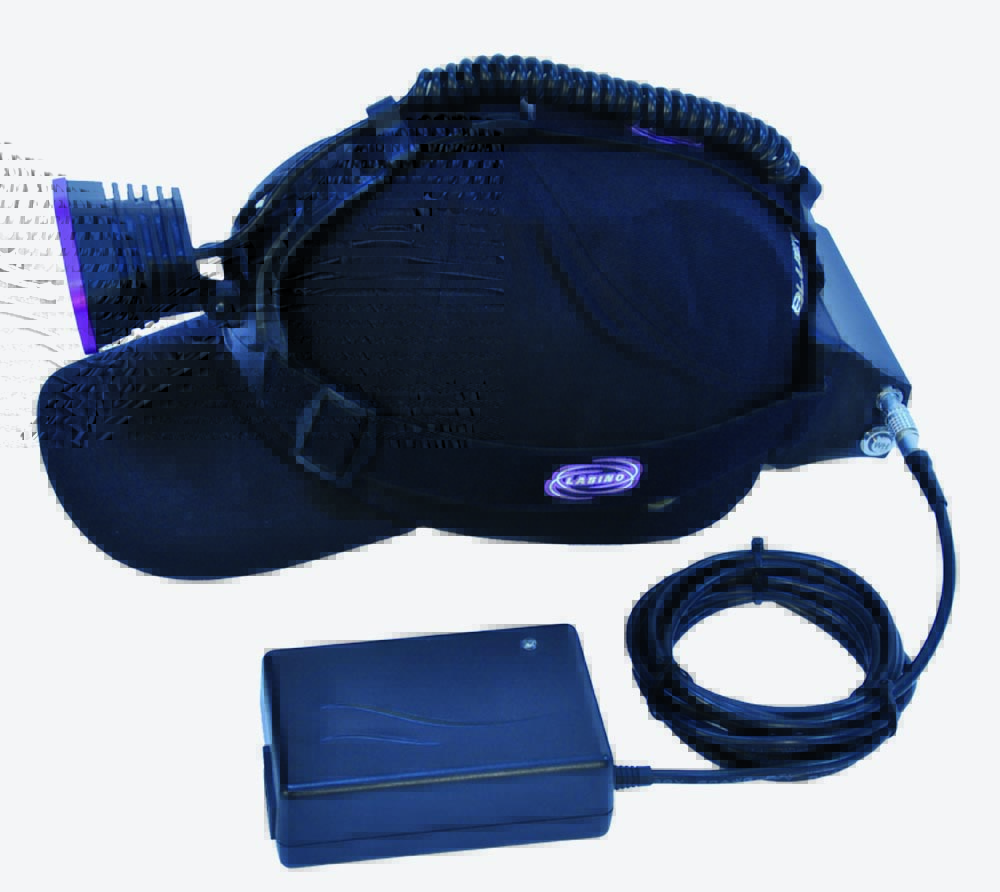

| Charger for charging without taking out the batteries. |  |

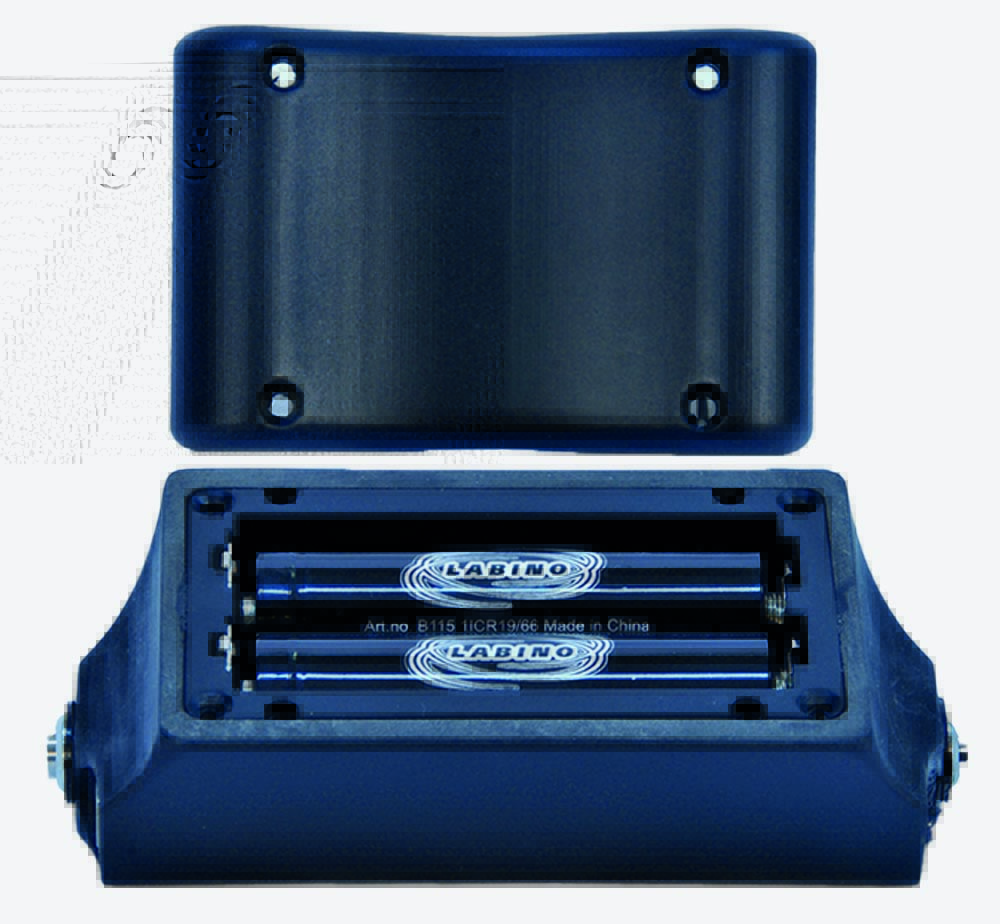

| Batteries can easily be replaced, 2 extra batteries are included in the kit. |  |
Technical Specification
| Model | Part.No. | Battery/Mains | White light | UV-A LED | Peak UV irradiance (μW/cm²) at 38.1 cm (15”) | Weight (with batteries) | Beam diameter (> 1000 µW/cm²) | Battery running time | IP68 | Warranty |
| UVG5 2.0 Floodlight UV | L131 | Battery | 1 | 4.000 | 610 g (21.5 oz) | 12 cm (4.8”) | 8h | Yes | 3 years | |
| UVG5 2.0 Floodlight UV & WH | L130 | Battery | Yes | 1 | 4.000 | 610 g (21.5 oz) | 12 cm (4.8″) | 8h | Yes | 3 years |
| UVG5 2.0 Midlight UV | L129 | Battery | 1 | 9.000 | 600 g (21.2 oz) | 10.5 cm (4.2”) | 12h | Yes | 3 years | |
| UVG5 2.0 Midlight UV & WH | L128 | Battery | Yes | 1 | 9.000 | 600 g (21.2 oz) | 10.5 cm (4.2”) | 12h | Yes | 3 years |
| UVG5 2.0 Spotlight UV | L127 | Battery | Yes | 1 | 80.000 | 600 g (21.2 oz) | 7.6 cm (3”) | 8h | Yes | 3 years |
Compliances
| Model | Part.No. | ASTM E3022 | Rolls-Royce RRES90061 | Airbus AITM6-1001 | USAF | Pratt&Whitney | The Boeing Co. | ISO 3059-12 |
| UVG5 2.0 Floodlight UV | L131 | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| UVG5 2.0 Floodlight UV & WH | L130 | Yes | Yes | Yes | Yes | Yes | Yes | |
| UVG5 2.0 Midlight UV | L129 | Yes | Yes | Yes | Yes | |||
| UVG5 2.0 Midlight UV & WH | L128 | Yes | Yes | Yes | ||||
| UVG5 2.0 Spotlight UV | L127 | Yes | Yes |
