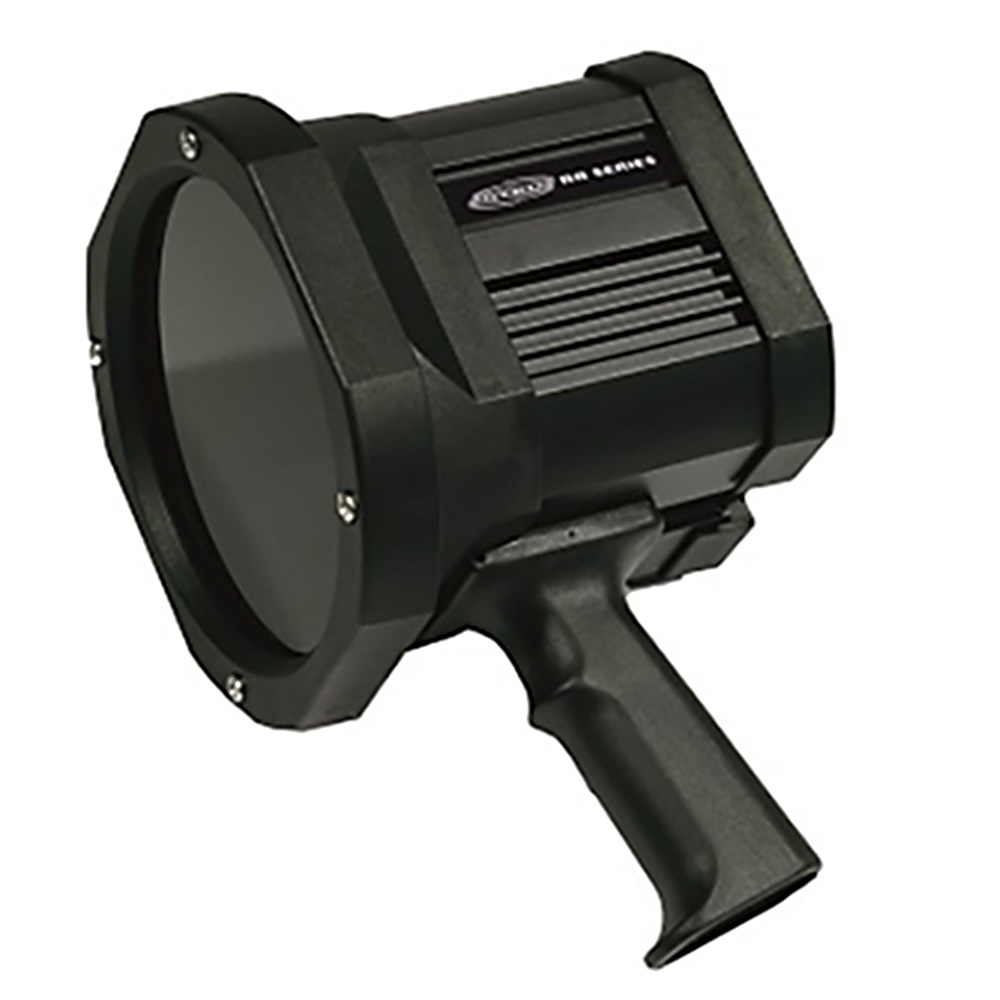

HANDHELD WITH LARGE BEAM
BB 2.0 SERIES
The BB 2.0 series is designed for non-destructive testing applications that require a large beam. The main difference between the various models are intensity and the choice of power source. All models have penetrant resistant sealing in combination with a large beam, extraordinary cooling and high durability.
All battery-operated models come with a charging PSU and can be charged and operated simultaneously.
BB 2.0 Ikaros
BB 2.0 Ikaros is designed for users that require a maximum intensity of 5 000 μW/cm2 at 38.1 cm/15″ and a large beam.
P/N L1074: BB 2.0 Ikaros Mains
P/N L1075: BB 2.0 Ikaros DUO (Battery)
NSN: 6635-64-002-1718

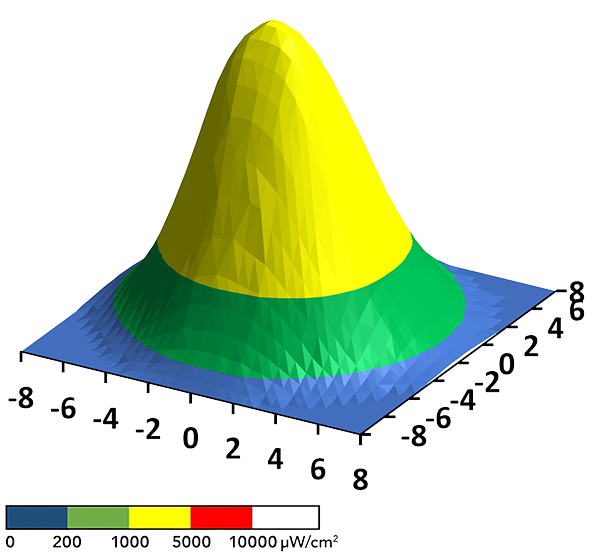

| Beam profile BB 2.0 Ikaros |
 |
BB 2.0 Helios
BB 2.0 Helios is designed for users that require a maximum intensity of 10 000 μW/cm2 at 38.1 cm/15″ and a large beam.
P/N L1076: BB 2.0 Helios Mains
P/N L1077: BB 2.0 Helios DUO (Battery)

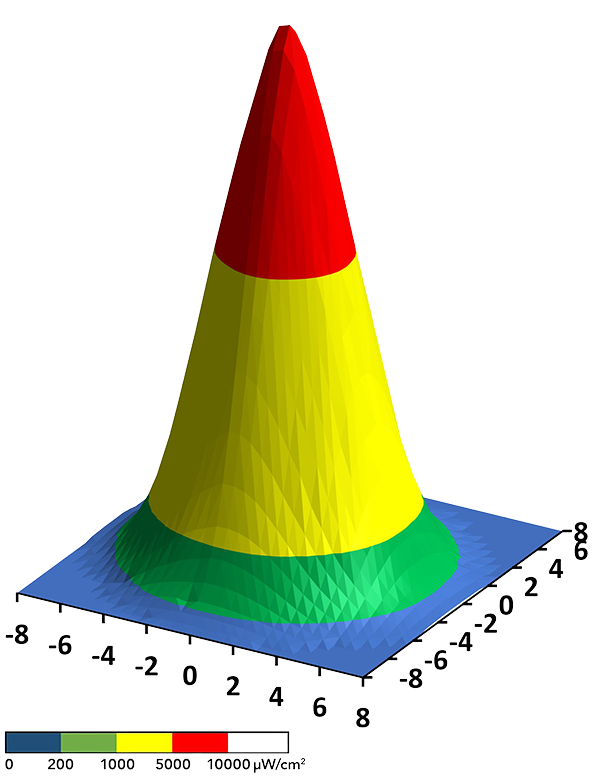

| Beam profile BB 2.0 Helios |
 |
BB 2.0 Artemis
BB 2.0 Artemis is used for application where inspection is performed at longer distances and a high intensity is required. Also used for leak detection and clean room verification. Artemis offers approx. 22 000 μW/cm2 at 38.1 cm/15″.
P/N L1078: BB 2.0 Artemis Mains
P/N L1079: MB 3.0 Artemis DUO (Battery)

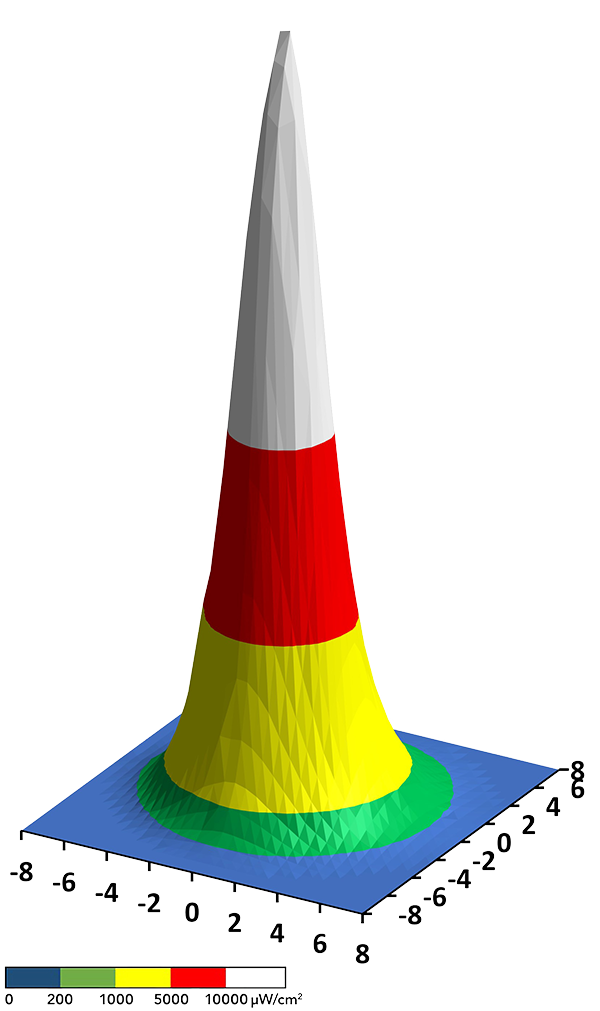

| Beam profile BB 2.0 Artemis |
 |

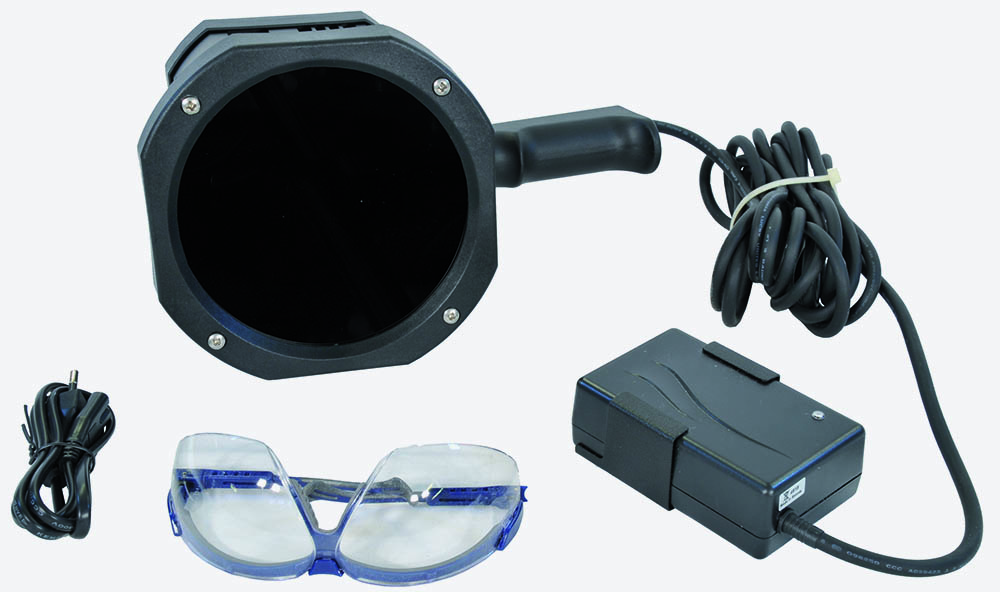

BB 2.0 Mains kit contents
|
BB 2.0 Mains kit includes:
|
 |

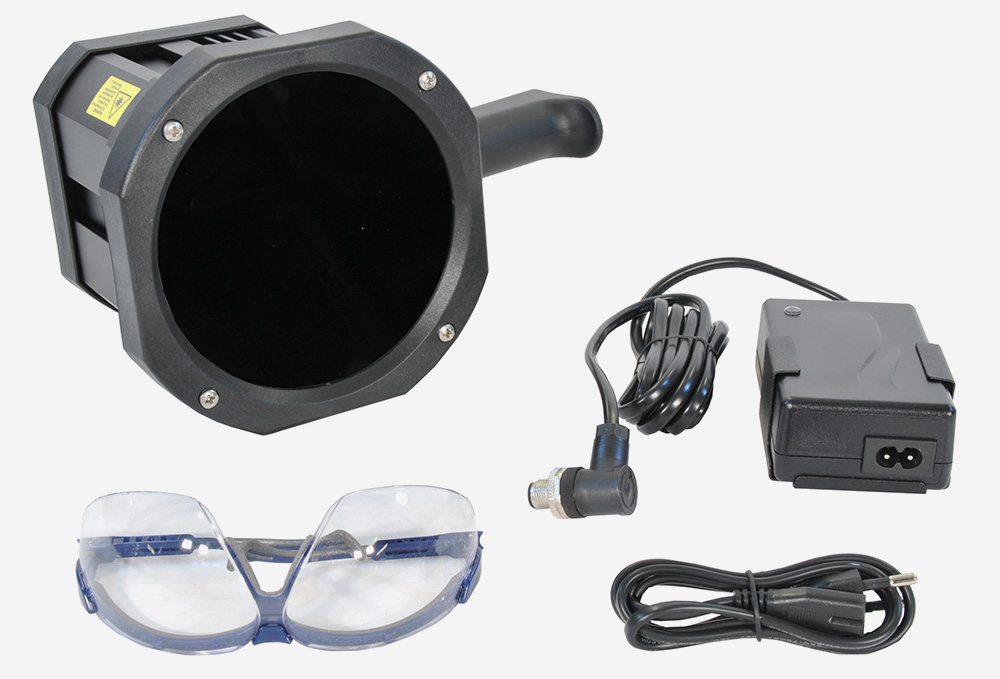

BB 2.0 Battery kit contents
|
MB 3.0 Battery kit includes:
|
 |
Additional information

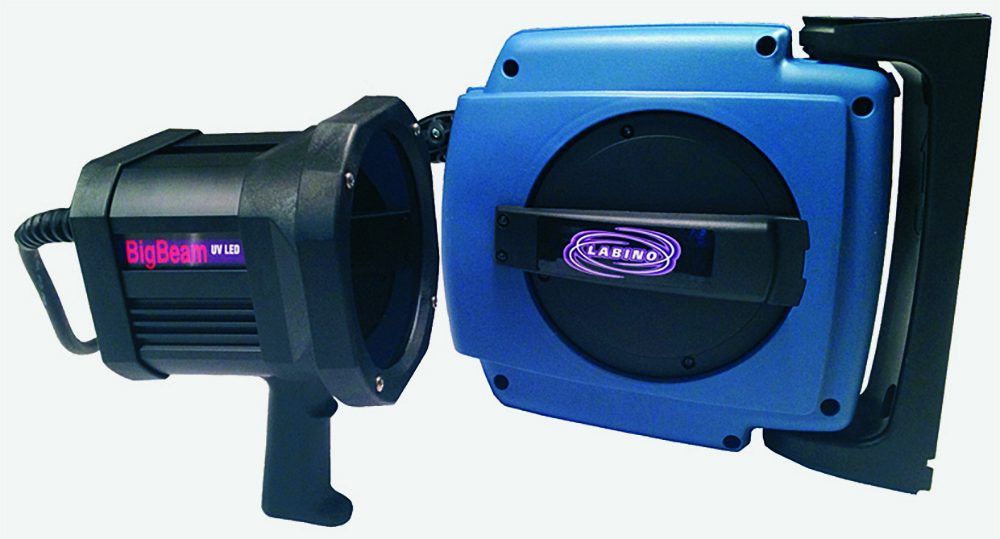

| BB 2.0 with a cable winder BB 2.0 mains is available with a cable winder. The winder offers 10 m of cable and releases workload from the inspector. |
 |

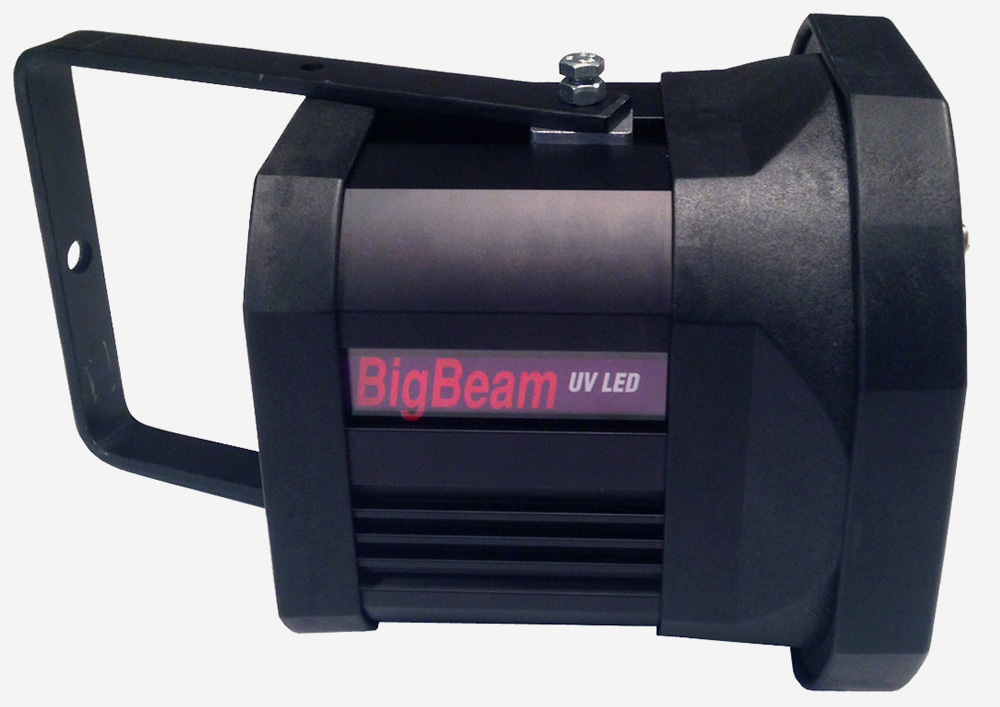

| Mounting yokes Mounting yokes for fixed installation of BB 2.0 |
 |

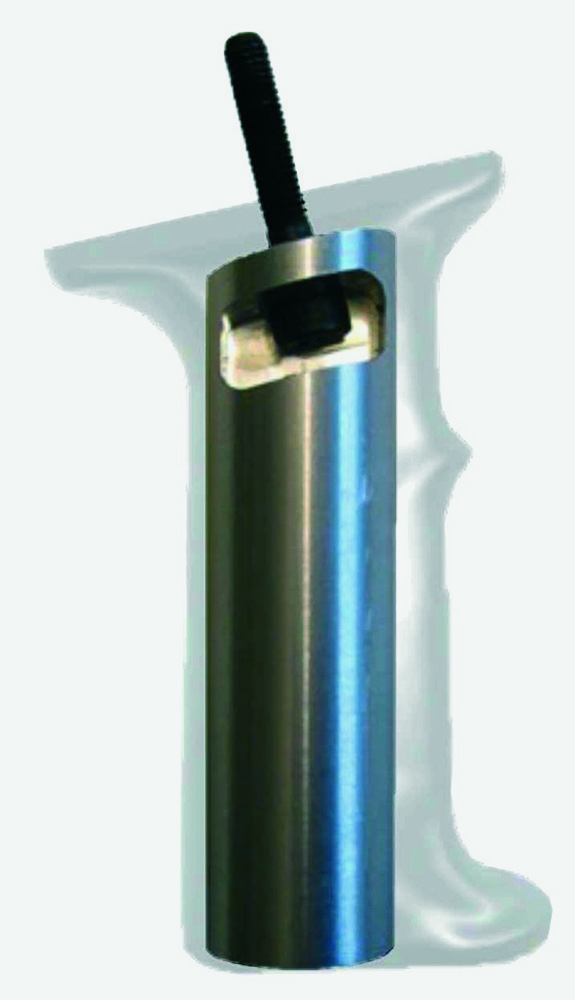

| Pistol handle adaptor For easier mounting on a flexible arm, an adaptor is available for the BB 2.0 pistol handle. The hole inside the adaptor suits most standard flexible arms in use on magnetic benches. |
 |
Technical Specification
| Model | Part.No. | Battery/Mains | UV-A LED | Peak UV irradiance (μW/cm²) at 38.1 cm (15”) | Weight (with batteries) | Beam diameter (> 1000 µW/cm²) | Battery running time | IP68 | Warranty |
|
BB 2.0 Ikaros |
L1075 |
Battery |
7 | 4.000 |
1.2 kg (2.6 lb) |
27 cm (10.6”) |
6,5h | Yes |
2 years |
|
L1074 |
Mains |
1.7 kg (3.7 lb) |
|
||||||
|
BB 2.0 Helios |
L1077 |
Battery |
8 |
9.000 |
1.2 kg (2.6 lb) |
28 cm (11”) |
6h | Yes |
2 years |
|
L1076 |
Mains |
1.7 kg (3.7 lb) |
|
||||||
|
BB 2.0 Artemis |
L1079 |
Battery |
8 |
22.000 |
1.2 kg (2.6 lb) |
26 cm (10.3”) |
4,5h | Yes |
2 years |
|
L1078 |
Mains |
1.7 kg (3.7 lb) |
|
Compliances
| Model | Part.No. | ASTM E3022 | Rolls-Royce RRES90061 | Airbus AITM6-1001 | USAF | Pratt&Whitney | The Boeing Co. | ISO 3059-12 |
| BB 2.0 Ikaros | L1075 | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| L1074 | ||||||||
BB 2.0 Helios |
L1077 | Yes | Yes | Yes | Yes | |||
| L1076 | ||||||||
BB 2.0 Artemis |
L1079 | Yes | Yes | |||||
| L1078 |
Related products

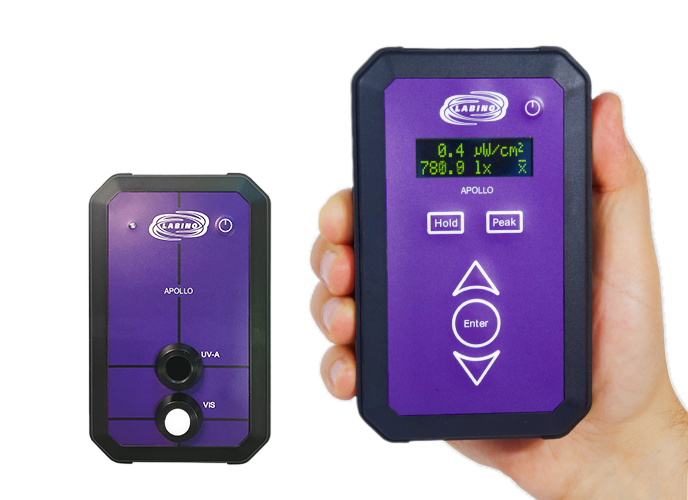

Light Meters
